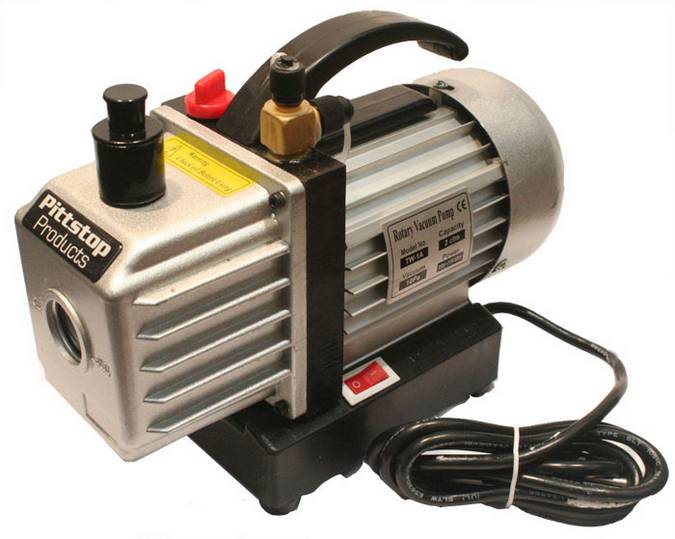

Pittstop Vacuum Pump

Pittstop manufactures a full line of vacuum pumps for auto, industrial, & home applications.  Our vacuum pumps come with a sealed motor for safety with flammable refrigerants.  All vacuum pumps are fitted with a 1/4" flare and 1/2" ACME fittings that can be used with all refrigerant hoses.  Remember to purchase Enviro-Safe Vacuum Pump Oil along with the vacuum pump.    Please note that many A/C systems contain debris.  In order to protect your vacuum pump from debris, we advise you to order a filter drier (available on this website 1/4" fittings).  In addition to this you would need a 36" hose.  This would protect your warranty on the unit.

• Low noise
• High Efficiency
• Preventing oil returning design
• Alloy Aluminum Casing
• Single Stroke oil-rotating-vane vacuum pumps
• Works with most refrigerants
• Can pull down to 29.9 inches of mercury
• 115 volt

Sizes available:
2 CFM -- 1/6 horsepower, 1720 RPM, 220ml oil capacity
3 CFM -- 1/4 horsepower 1720 RPM, 220 ml oil capacity
5 CFM -- 1/3 horsepower 1720 RPM, 300 ml oil capacity

Vacuum Pump manufacturers recommend oil be changed after each contaminated system is evacuated for maximum protection.  Vacuum Pump Oil is available for purchase separately.

Vacuum Pump Oil can be found in the Automotive Fluid section.
Manufactured by an ISO 9001 company.
