22a Recharge Kit
< Return to Product Listings
*Haz/Mat fee not included.
MSDS
22a Refrigerant (44 KB, PDF)
Equivalent Weight Installation Chart
Download Chart (266 KB, PDF)
This is the same product as the 22a in the larger cylinders.
Connect other end of hose to low pressure end of A/C unit.
*Does not work with R410a.

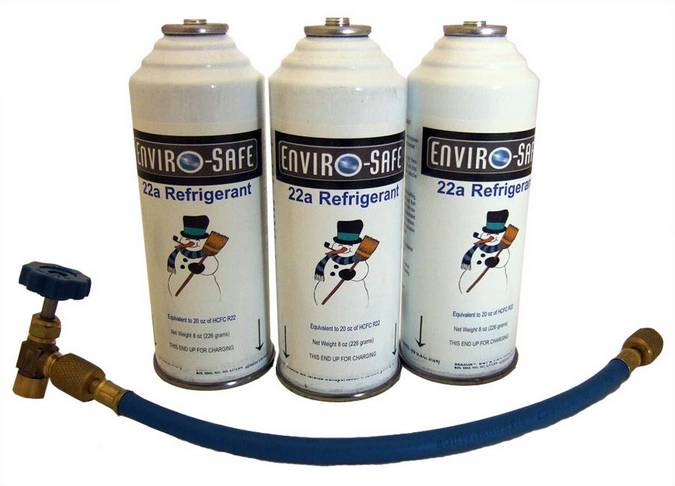

This kit includes:
- 3 - 8 ounce cans of Enviro-Safe 22a (equivalent to: 60 oz. of R22)
- 1 can tap and hose (Connect other end of hose to low pressure end of A/C unit) Low pressure end is usually the big line with the foam.
This is the same product as R22a in 30 lb and 50 lb equivalent cylinder.
Instructions for connecting can/tap and hose to can:
*Connect can to can tap (end with handle)
*Connect other end to A/C unit
*Pierce can (turn blue handle down)
*Turn can upside down
*Open blue handle to inject product.
This product cannot be shipped to Alaska, Hawaii, Canada or any other overseas country except in pallet quantity.
| Enviro-Safe 22a | |||
| Pressure Temperature Chart | |||
| Temp | Pressure | Temp | Pressure |
| °F | psig | °F | psig |
| -44 | 0 | 84 | 137.9 |
| -40 | 0.03 | 88 | 146.5 |
| -36 | 0.03 | 92 | 155.4 |
| -32 | 0.03 | 96 | 164.7 |
| -28 | 6.6 | 100 | 174.3 |
| -24 | 8.6 | 104 | 184.4 |
| -20 | 10.7 | 108 | 194.8 |
| -16 | 13 | 112 | 205.6 |
| -12 | 15.5 | 116 | 216.8 |
| -8 | 18.1 | 120 | 228.4 |
| -4 | 20.8 | 124 | 240.5 |
| 0 | 23.7 | 128 | 252.9 |
| 4 | 26.9 | 132 | 265.9 |
| 8 | 30.2 | 136 | 279.2 |
| 12 | 33.6 | 140 | 293 |
| 16 | 37.3 | 144 | 307.3 |
| 20 | 41.2 | 148 | 322.1 |
| 24 | 45.3 | 152 | 337.4 |
| 28 | 49.7 | 156 | 353.1 |
| 32 | 54.2 | 160 | 369.4 |
| 36 | 59 | 164 | 386.2 |
| 40 | 64.1 | 168 | 403.6 |
| 44 | 69.4 | 172 | 421.5 |
| 48 | 74.9 | 176 | 440 |
| 52 | 80.8 | 180 | 459.1 |
| 56 | 86.8 | 184 | 478.8 |
| 60 | 93.2 | 188 | 499.2 |
| 64 | 99.9 | 192 | 520.3 |
| 68 | 106.9 | 196 | 542.1 |
| 72 | 114.1 | 200 | 564.7 |
| 76 | 121.7 | 204 | 588.4 |
| 80 | 129.6 | ||
