22a Master Recharge Kit
< Return to Product Listings
*Haz/Mat fee not included.
MSDS
22a Refrigerant MSDS (44 KB, PDF)
Equivalent Weight Installation Chart
Download Chart (266 KB, PDF)
STOP those annoying yearly fill-ups!

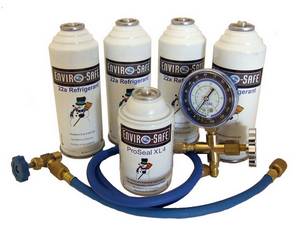

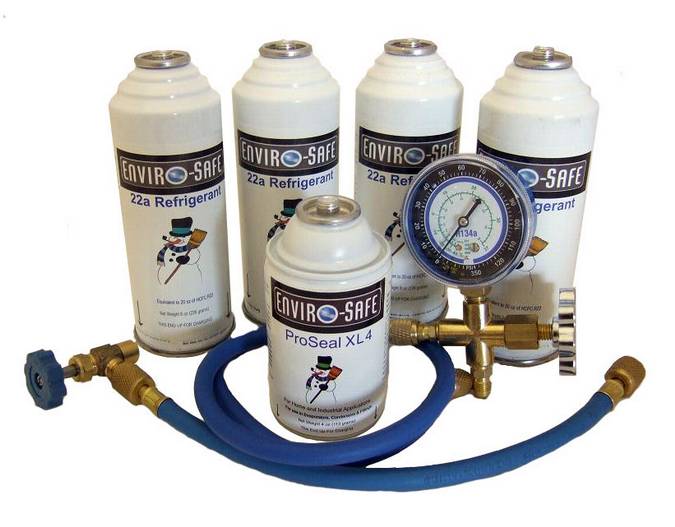

This kit includes:
- 4 - 8 ounce cans of Enviro-Safe 22a (equivalent to 80 oz. of R22)
- 1-can of ProSeal XL4 - this product seals leaks in the metal fittings, A/C line sets, A Coils, condenser coils etc...
- 1-Single Gauge Manifold 200 (can tap and full size gauge as well as hoses) - this will allow for proper amount of refrigerant to be installed into A/C
- Tap for cans: this tap will fit all of the ES Refrigerant Cans
- Hoses: for connecting to A/C valve for filling
Instructions for connecting can/tap and hose to can:
*Connect can to can tap (end with handle)
*Connect other end to A/C unit
*Pierce can (turn blue handle down)
*Turn can upside down
*Open blue handle to inject product.
This product cannot be shipped to Alaska, Hawaii, Canada or any other overseas country except in pallet quantity.
| Enviro-Safe 22a | |||
| Pressure Temperature Chart | |||
| Temp | Pressure | Temp | Pressure |
| °F | psig | °F | psig |
| -44 | 0 | 84 | 137.9 |
| -40 | 0.03 | 88 | 146.5 |
| -36 | 0.03 | 92 | 155.4 |
| -32 | 0.03 | 96 | 164.7 |
| -28 | 6.6 | 100 | 174.3 |
| -24 | 8.6 | 104 | 184.4 |
| -20 | 10.7 | 108 | 194.8 |
| -16 | 13 | 112 | 205.6 |
| -12 | 15.5 | 116 | 216.8 |
| -8 | 18.1 | 120 | 228.4 |
| -4 | 20.8 | 124 | 240.5 |
| 0 | 23.7 | 128 | 252.9 |
| 4 | 26.9 | 132 | 265.9 |
| 8 | 30.2 | 136 | 279.2 |
| 12 | 33.6 | 140 | 293 |
| 16 | 37.3 | 144 | 307.3 |
| 20 | 41.2 | 148 | 322.1 |
| 24 | 45.3 | 152 | 337.4 |
| 28 | 49.7 | 156 | 353.1 |
| 32 | 54.2 | 160 | 369.4 |
| 36 | 59 | 164 | 386.2 |
| 40 | 64.1 | 168 | 403.6 |
| 44 | 69.4 | 172 | 421.5 |
| 48 | 74.9 | 176 | 440 |
| 52 | 80.8 | 180 | 459.1 |
| 56 | 86.8 | 184 | 478.8 |
| 60 | 93.2 | 188 | 499.2 |
| 64 | 99.9 | 192 | 520.3 |
| 68 | 106.9 | 196 | 542.1 |
| 72 | 114.1 | 200 | 564.7 |
| 76 | 121.7 | 204 | 588.4 |
| 80 | 129.6 | ||
